NICKEL ALLOY

WELD PIPE

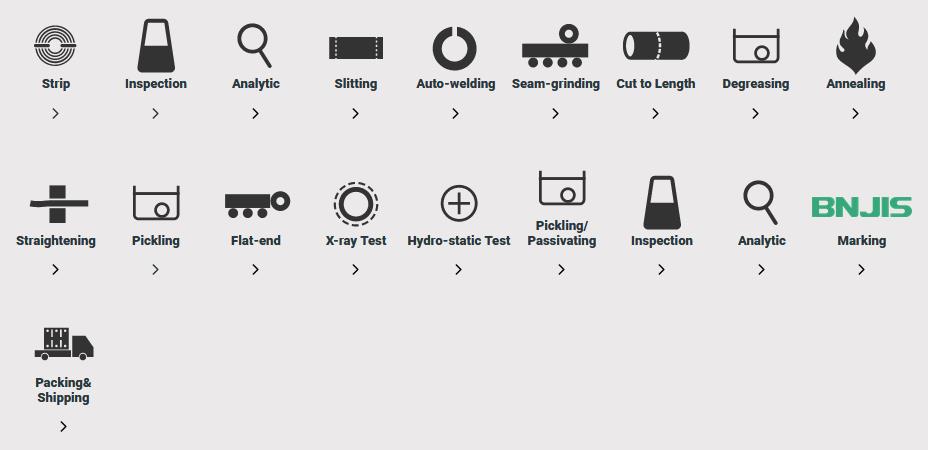

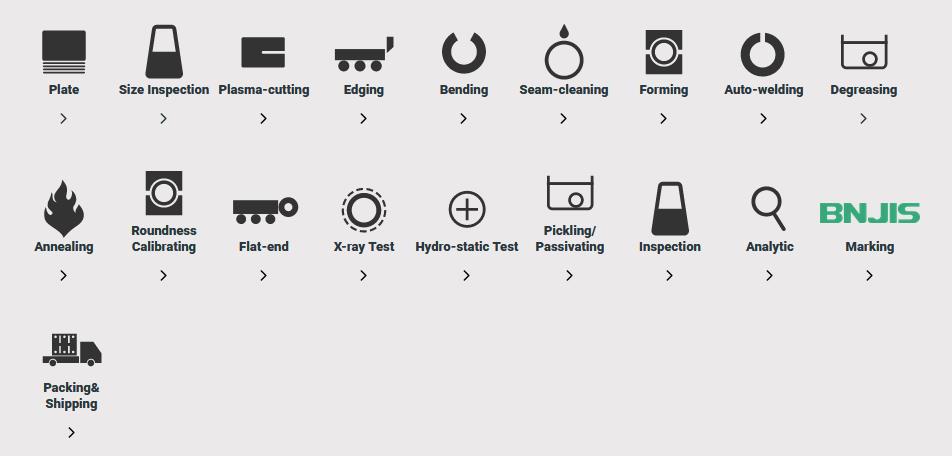

Bnjis produces and manufactures a wide range of nickel alloy welded pipe & tube. Nickel alloy welded pipe & tube is a kind of nickel alloy pipe or tube formed by bending and welding the nickel alloy strip or nickel alloy plate, so the quality of raw materials is very important and decisive. In AEETHER, we choose the raw materials from big factory and use the most advanced splitting and welding technology to manufacture every nickel alloy welded pipe & tube.

APPLICATION AREA

Petrochemical, oil and gas exploitation, flue gas desulfurization, seawater desalination, water treatment, non-ferrous metal smelting, chemical industry, papermaking, heating cables, etc.

NICKE ALLOY WELD PIPE & TUBE

Specifications

DIMENSIONS

Outer Diameter: Outside Diameter: Φ6 - Φ200mm (Minimum - Maximum)

Wall Thickness: 0.35 - 6.00mm (Minimum – Maximum)

Length: 12000mm (Maximum)

Customized size needs to be confirmed with us

FEATURES

Excellent high temperature resistance, corrosion resistance. Standard roundness and smooth surface. The weld seam of the nickel alloy welded pipe & tube has been finely polished.

STANDARDS

ASTM B464, ASTM B464M, ASTM B468

ASTM B514, ASTM B515, ASTM B516, ASTM B517

ASTM B619, ASTM B619M, ASTM B626, ASTM B673, ASTM B674, ASTM B675, ASTM B676

ASTM B704, ASTM B705, ASTM B710, ASTM B725, ASTM B751, ASTM B775

MAIN GRADES

Monel(400, 401, K-500, etc),

Inconel(600, 601, 625, 718, etc),

Incoloy(800, 825, A-286, etc) .

Hastelloy(B-2, C-22, C-276, etc).
